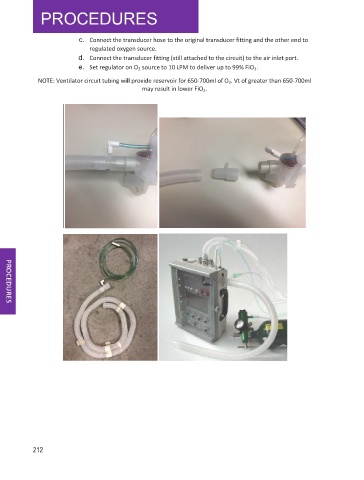

c. Connect the transducer hose to the original transducer fitting and the other end to
regulated oxygen source.
d. Connect the transducer fitting (still attached to the circuit) to the air inlet port.
e. Set regulator on O 2 source to 10 LPM to deliver up to 99% FiO 2 .
NOTE: Ventilator circuit tubing will provide reservoir for 650-700ml of O 2 . Vt of greater than 650-700ml
may result in lower FiO 2 .
