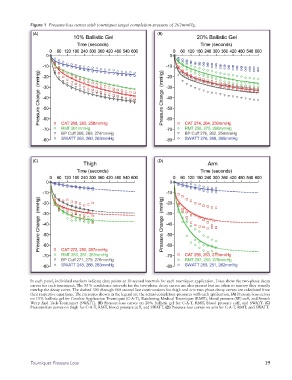

Figure 1 Pressure-loss curves with tourniquet target completion-pressure of 262mmHg.
(A) (B)
(C) (D)
In each panel, individual markers indicate data points at 30 second intervals for each tourniquet application. Lines show the two-phase decay
curves for each tourniquet. The 95% confidence intervals for the two-phase decay curves are also present but are often so narrow they visually
overlap the decay curve. The dashed 301 through 600 second line continuations for thigh and arm two-phase decay curves are calculated from
their respective equations. The pressures shown in the legend are the actual completion-pressures with each application. (A) Pressure-loss curves
on 10% ballistic gel for Combat Application Tourniquet (C-A-T), Ratcheting Medical Tourniquet (RMT), blood pressure (BP) cuff, and Stretch
Wrap And Tuck-Tourniquet (SWATT). (B) Pressure-loss curves on 20% ballistic gel for C-A-T, RMT, blood pressure cuff, and SWATT. (C)
Pressure-loss curves on thigh for C-A-T, RMT, blood pressure cuff, and SWATT. (D) Pressure-loss curves on arm for C-A-T, RMT, and SWATT.
Tourniquet Pressure Loss 19
