Page 91 - JSOM Fall 2025
P. 91

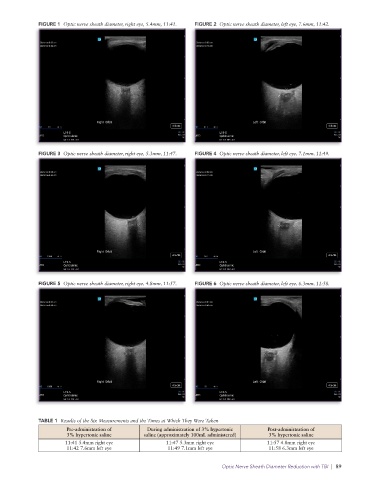

FIGURE 1 Optic nerve sheath diameter, right eye, 5.4mm, 11:41. FIGURE 2 Optic nerve sheath diameter, left eye, 7.6mm, 11:42.
FIGURE 3 Optic nerve sheath diameter, right eye, 5.3mm, 11:47. FIGURE 4 Optic nerve sheath diameter, left eye, 7.1mm, 11:49.
FIGURE 5 Optic nerve sheath diameter, right eye, 4.8mm, 11:57. FIGURE 6 Optic nerve sheath diameter, left eye, 6.3mm, 11:58.
TABLE 1 Results of the Six Measurements and the Times at Which They Were Taken
Pre-administration of During administration of 3% hypertonic Post-administration of
3% hypertonic saline saline (approximately 100mL administered) 3% hypertonic saline
11:41 5.4mm right eye 11:47 5.3mm right eye 11:57 4.8mm right eye
11:42 7.6mm left eye 11:49 7.1mm left eye 11:58 6.3mm left eye
Optic Nerve Sheath Diameter Reduction with TBI | 89
